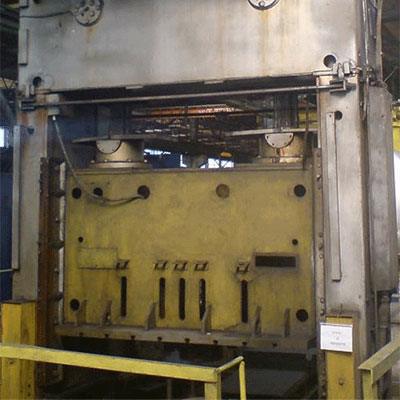

STRAIGHT SIDED PRESS
ERFURT 500 TON POWER PRESS
TECHNICAL DETAILS
STOCK NO. |
2 |
|---|---|
MODEL NO. |
PKZZ ERFURT |
CAPACITY |
500 |
SLIDE STROKE |
500 MM |
NO. OF STROKE |
12 |
AREA OF BOLSTER(R.L X F.B) |
2800 X 1500 |
THICKNESS OF BOLSTER |
200 |
AREA OF UNDER FACE OF SLIDE(R.L X F.B) |
2800 X 1500 |
SHUT HEIGHT |
920 MM |
SLIDE ADJUSTMENT |
250 MM |
MAIN MOTOR |
60 HP |
DIE CUSHION |
YES 2 NOS. |
CUSHION CAPACITY |
60 TON |
CUSHION STROKE |
250 MM |
AREA OF CUSHION PAD (R.L X F.B) |
2580 X 1040 |
