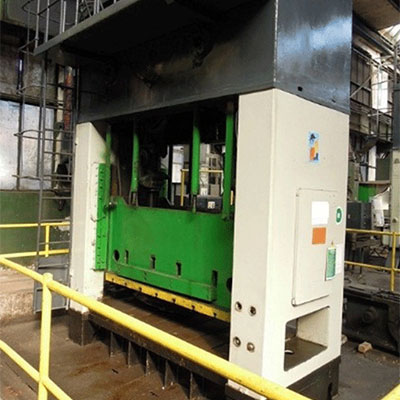

Straight Sided Press - Erfurt 315 Ton Power Press
STRAIGHT SIDED PRESS
ERFURT 315 TON POWER PRESS
Technical Specifications
STOCK NO. |
1 |
|---|---|
MODEL NO. |
PKZZ |
CAPACITY |
315 |
SLIDE STROKE |
400 MM |
NO. OF STROKE |
18 |
AREA OF BOLSTER(R.L X F.B) |
2500 X 1400 |
THICKNESS OF BOLSTER |
140 |
AREA OF UNDER FACE OF SLIDE(R.L X F.B) |
2500 X 1400 X 80 |
SHUT HEIGHT |
720 |
SLIDE ADJUSTMENT |
130 MM |
MAIN MOTOR |
40 KW |
SLIDE ADJUSTMENT MOTOR |
2.2 KW |
DIE CUSHION |
Yes |
CUSHION CAPACITY |
60 TON |
CUSHION STROKE |
160 MM |
