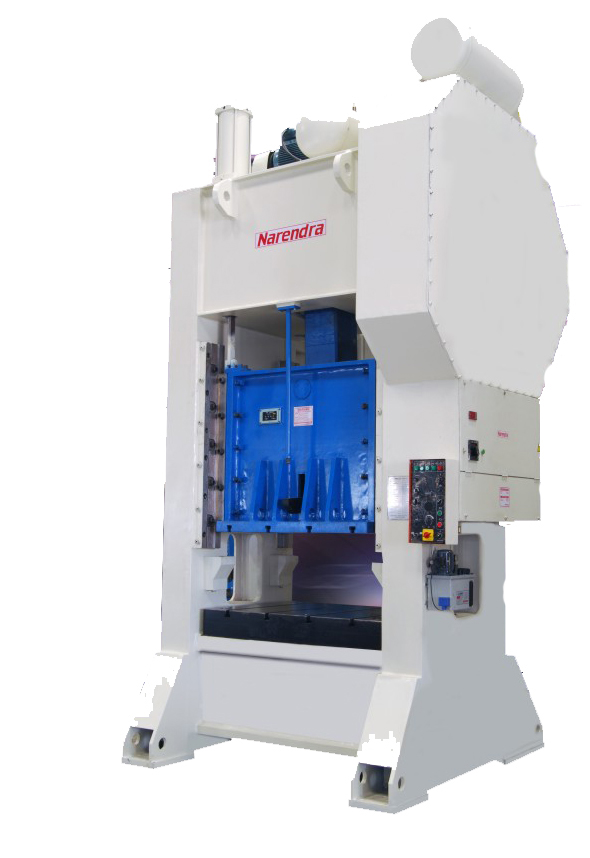

Straight Sided Presses (NSU)

MODEL			NSU–125	NSU–165	NSU–200	NSU–250	NSU–315	NSU–400	NSU–500	NSU–600
CAPACITY		TON	125	165	200	250	315	400	500	600
RATING POINT		MM	5	6	9	12	12	12	12	13
BOLSTER AREA LR X FB		MM	700 X 600	900 X 800	900 X 800	1000 X 900	1100 X 1000	1200 X 1100	1300 X 1200	1400 X 1300
SLIDE AREA LR X FB		MM	650 X 550	750 X 750	800 X 800	900 X 900	900 X 900	1000 X 1000	1100 X 1000	1200 X 1100
FIXED STROKE		MM	125	160	200	200	250	300	300	300
DIE HEIGHT		MM	350	400	400	450	500	550	600	700
SLIDE ADJUSTMENT		MM	90	110	125	125	150	150	200	200
BOLSTER THICKNESS		MM	140	140	160	180	180	200	200	200
WINDOW OPENING		MM	300 X 400	300 X 400	400 X 450	400 X 450	400 X 450	450 X 500	500 X 550	500 X 600
FLOOR TO TOP OF BOLSTER		MM	900	900	1000	1000	1050	1100	1100	1100
AIR PRESSURE		kg/cm2	5	5	5	5	5	5	5	5
SPEED		SPM	45	40	35	35	30	25	20	20
MAIN MOTOR		HP	12.5	15	20	25	30	40	50	60
SLIDE ADJUSTMENT MOTOR		HP	0.5	0.5	1	1	1	1.5	1.5	1.5
DIE CUSION(OPT.)	CAPACITY	TON	8	10	14	14	30	40	50	50
SLIDE ADJUSTMENT MOTOR	STROKE	MM	80	90	100	100	150	150	150	150
