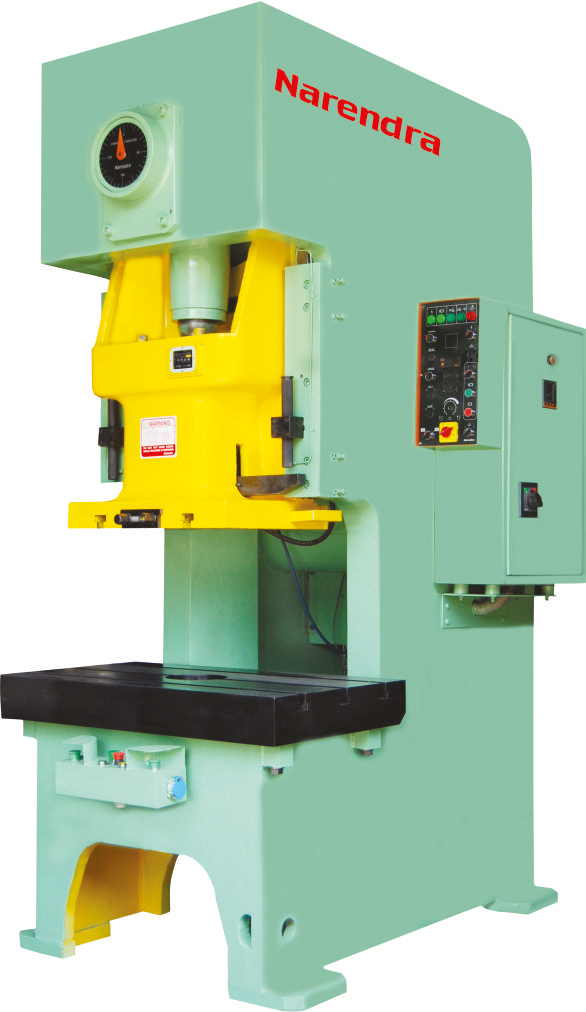

Cross Shaft Press (NX)

The High Rigid Frame

Welded steel construction, stress relieved, computer aided frame design extreme rigid to avoid angular and elongation deflection of the frame.

Compound Clutch & Brake

This high torque performance compound clutch & brake ensures movement slide quick stops at precise position, the production is therefore fast and safe.

Hydraulic Overload Safety Device

This series of presses from 63–250 tons are all equipped with hydraulic overload safety device instantly goes into emergency stop mode to protect the die and the press, without concern about die jam.

Slude Adjust Motor/Die Height Indicator

This series of presses from 63–250 tons are all equipped with easy to use motorised slide adjuster, and the slide depth is locked by a unique penumatic macanism. Easily and quickly adjust accurate die height by pushing up and down buttons on the operation stand and easy to read. Die height indicator is also installed in the slide.

Six–face wide and long guide

The guide rail is made of phosphorous bronze which is excellent resistance and ensures smooth and accurate slide movement. Not only improves work efficiency with perfect production quality but also extends life.

Ball Rod

The ball rod is made of EN–24 alloy steel for longer duration. Extra aluminium bronze is added as its nut for accurate movement without sudden changes.
