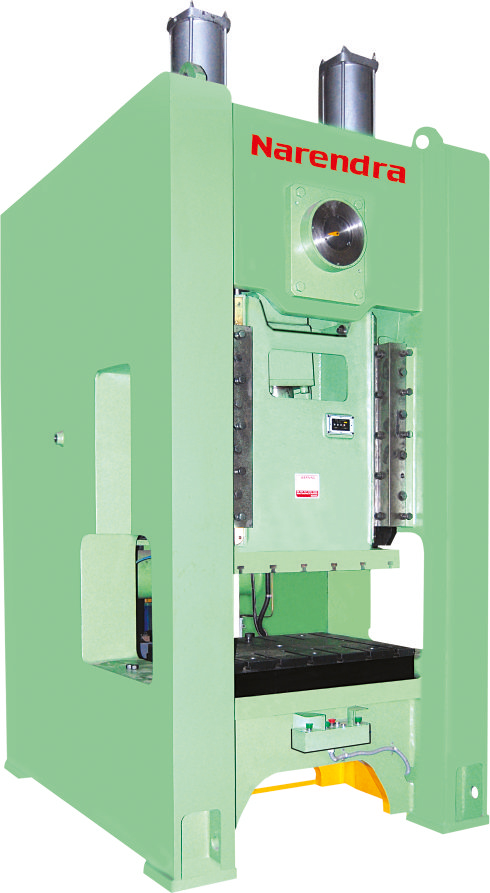

Straight Sided Single Crank Press (NHX)

This semi straight side single crank press is steel plate welding structure-type and suit thick plate manufacturing, and used to extensive sheet metal working of blanking, piercing, stamping, etc.

  • Strong frame guaranteeing motional precision
  • Eight side guide best for eccentricity & high precision
  • Safety for working & convenience for use
  • Suitable for automatization & rationalization

Technical Specifications


MODEL   NHX–110 NHX–160 NHX–200 NHX–250 NHX–315 NHX–400 NHX–500
CAPACITY TON 110 160 200 250 315 400 500
RATING POINT AT 20° B.D.C MM 5 6 6 6 8 10 10
FLY WHEEL ENERGY (KJ) MM 25 55 70 80 110 240 270
STROKE Fixed STD. MM 125 160 200 220 225 250 250
ADJ.OPTIONAL MM 8–125 10–160 10–160 .... .... .... ....
SLIDE ADJUSTMENT MM 90 100 110 120 125 125 125
SPEED SPM 50 40 35 30 25 20 20
SHUT HT. ABOVE BOLSTER MM 350 400 450 450 500 550 600
BOLSTER AREA MM 900 X 800 1000 X 900 1000 X 900 1100 X 1000 1200 X 900 1250 X 1050 1300 X 1050
THICKNESS MM 140 165 180 180 180 200 200
SLIDE AREA MM 700 X 650 800 X 750 800 X 750 900 X 800 1100 X 800 1100 X 900 1200 X 900
SHANK DIA MM 50 60 65 65 65 65 65
FLOOR TO TOP OF BOLSTER MM 900 900 1000 1000 1000 1100 1100
OPENING IN COLUMN MM 320 X 350 400 X 550 400 X 550 425 X 600 425 X 600 450 X 650 450 X 650
MAIN MOTOR HP 10 15 20 25 30 40 50
SLIDE ADJUSTMENT MOTOR HP 0.5 1 1 2 2 2 2
REQUIRED AIR PRESSURE kg/cm2 5.5 5.5 5.5 5.5 5.5 5.5 5.5
DIE CUSION CAPACITY TON 8 10 14 14 30 30 30
DIE CUSION STROKE MM 90 100 110 110 100 125 125
